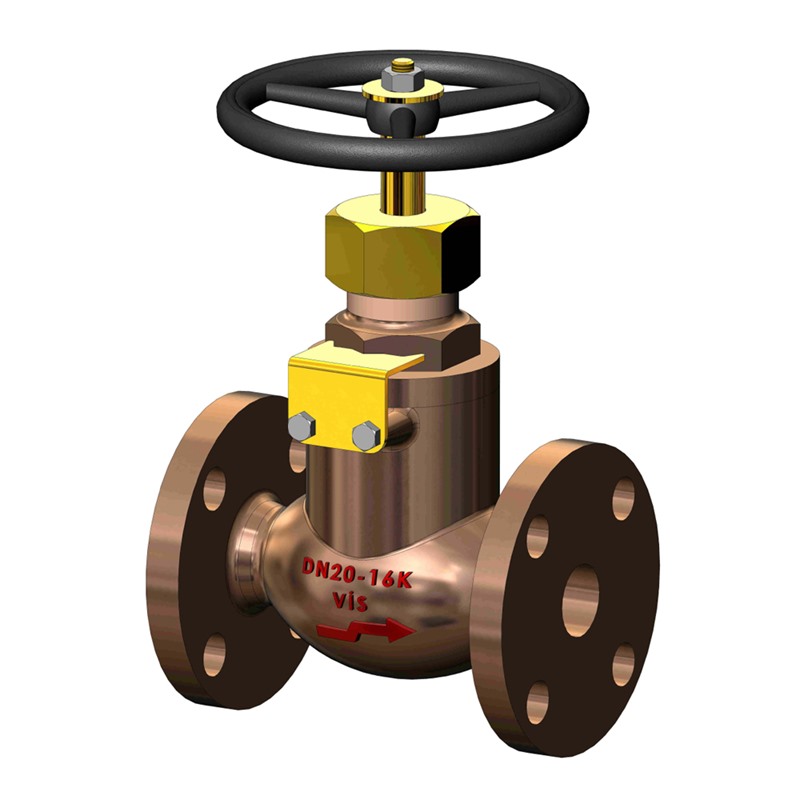

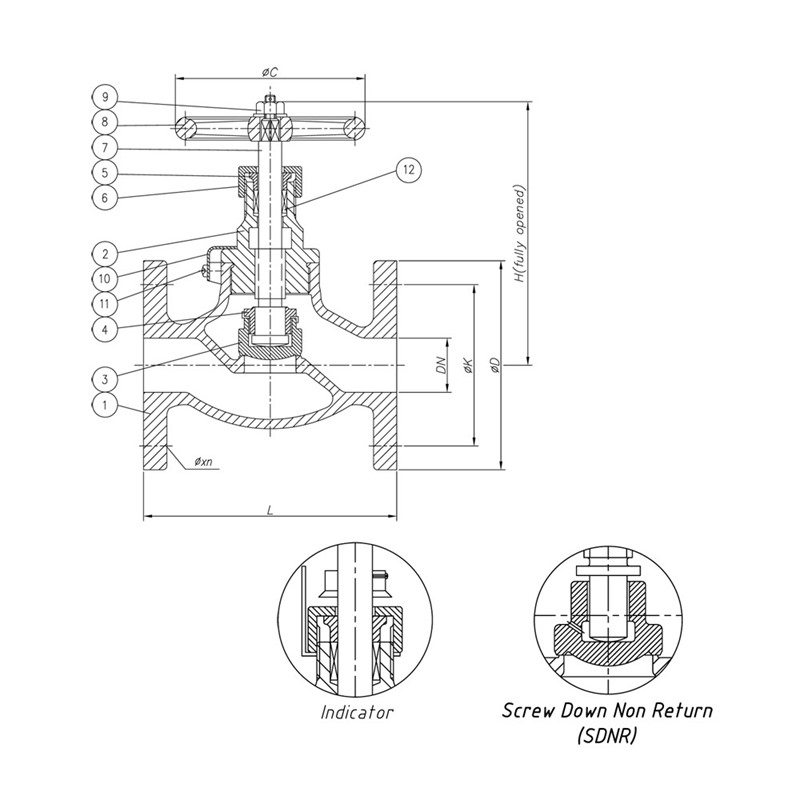

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Bronze Rg5 |
| 2 | Bonnet | Bronze Rg5 |
| 3 | Disc | Brass / Bronze |
| 4 | Disc Nut | Brass |
| 5 | Pcking Gland | Brass |
| 6 | Gland Nut | Brass |
| 7 | Stem | Brass |
| 8 | Handwheel | GG 25 |
| 9 | Nut | Brass / SS 304 |
| 10 | Lock Plate | Brass / SS 304 |
| 11 | Screw | Brass / SS 304 |
| 12 | Packing | Graphite |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | Weight | IMPA Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| JIS | DN | L | H | C | D | K | Øxn | kg | IMPA STOP | IMPA SDNR |
| 16K | 15 | 110 | 130 | 80 | 95 | 70 | Ø15x4 | 2,76 | 750141 | 751071 |
| 20 | 120 | 140 | 100 | 100 | 75 | Ø15x4 | 3,72 | 750142 | 751072 | |
| 25 | 130 | 160 | 125 | 125 | 90 | Ø19x4 | 5,2 | 750143 | 751073 | |
| 32 | 160 | 170 | 125 | 135 | 100 | Ø19x4 | 6,91 | 750144 | 751074 | |
| 40 | 180 | 190 | 140 | 140 | 105 | Ø19x4 | 8,43 | 750145 | 751075 | |
| Design | : | JIS F7303 STOP JIS F7409 SDNR |
| Pressure Rate | : | 16 K |
| Size Range | : | DN15-DN40 |
| Temperature | : | Steam < 205 ºC |
| Water | : | < 120 ºC |
| Flange Ends | : | JIS B2240 - 16K |
| Inspection | : | JIS F7400 |
| Application | : | Air, Gas, Oil, Pulsation Water |
