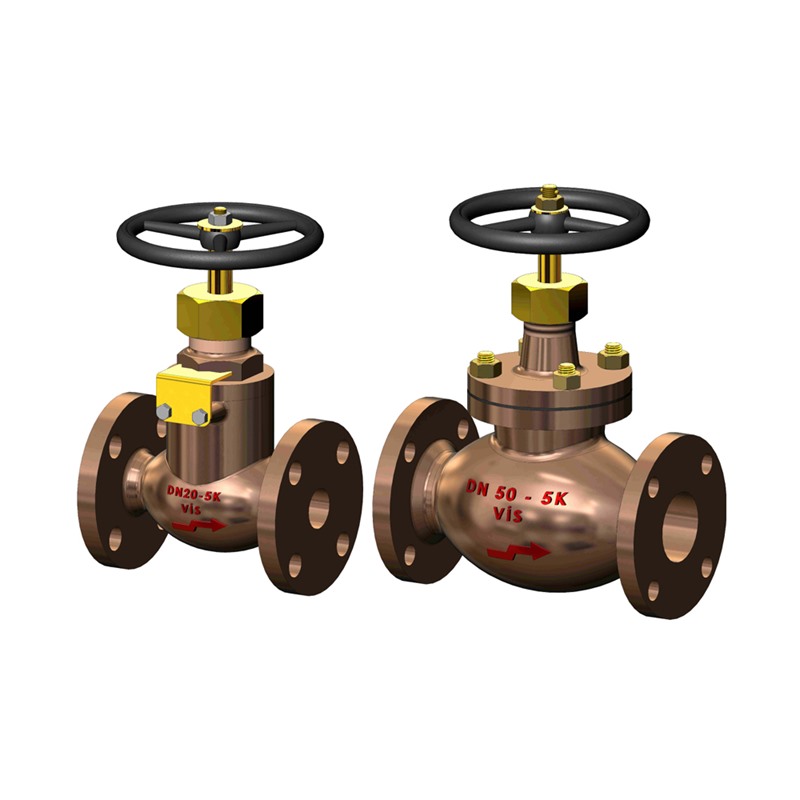

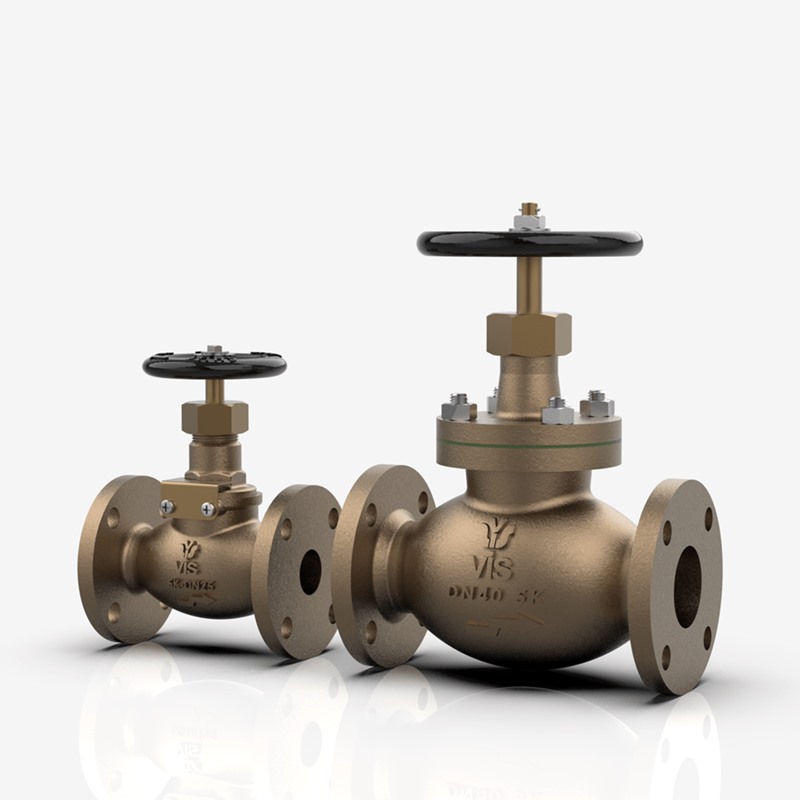

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Bronze Rg5 |
| 2 | Bonnet | Bronze Rg5 |
| 3 | Disc | Brass / Bronze |
| 4 | Disc Nut | Brass |
| 5 | Packing Gland | Brass |
| 6 | Gland Nut | Brass |
| 7 | Stem | Brass |
| 8 | Handwheel | GG 25 |
| 9 | Nut | Brass / SS 304 |
| 10 | Lock Plate | Brass / SS 304 |
| 11 | Screw | Brass / SS 304 |
| 12 | Packing | Graphite |
| 13 | Gasket | Non-Asbestos |
| 14 | Stud/Nut | Brass / SS 304 |

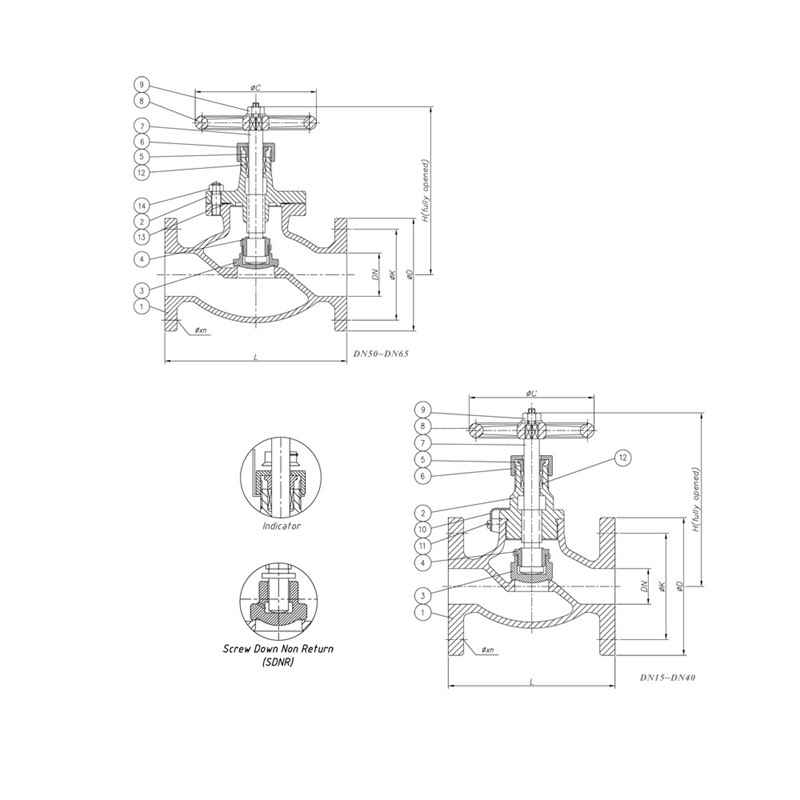

| Nominal Pressure | Nominal Diameter | Valve Dimensions | Weight | IMPA Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| JIS | DN | L | H | C | D | K | Øxn | kg | IMPA STOP | IMPA SDNR |
| 5K | 15 | 100 | 130 | 80 | 80 | 60 | Ø12x4 | 2,02 | 750121 | 751051 |
| 20 | 110 | 140 | 100 | 85 | 65 | Ø12x4 | 2,86 | 750122 | 751052 | |
| 25 | 120 | 160 | 125 | 95 | 75 | Ø12x4 | 3,54 | 750123 | 751053 | |
| 32 | 140 | 170 | 125 | 115 | 90 | Ø15x4 | 5 | 750124 | 751054 | |
| 40 | 160 | 190 | 140 | 120 | 95 | Ø15x4 | 6,48 | 750125 | 751055 | |
| 50 | 210 | 235 | 140 | 130 | 105 | Ø15x4 | 11,7 | 750126 | 751056 | |
| 65 | 250 | 260 | 160 | 155 | 130 | Ø15x4 | 17 | 750127 | 751057 | |
| Design | : | JIS F7301 STOP JIS F7351 SDNR |
| Pressure Rate | : | 5K |
| Size Range | : | DN15- DN65 |
| Temperature | : | Steam < 205°C |
| Water <120°C | ||
| Flange Ends | : | JIS B2240 - 5K |
| Inspection | : | JIS F7400 |
| Application | : | Air, Gas, Oil, Pulsation Water |
