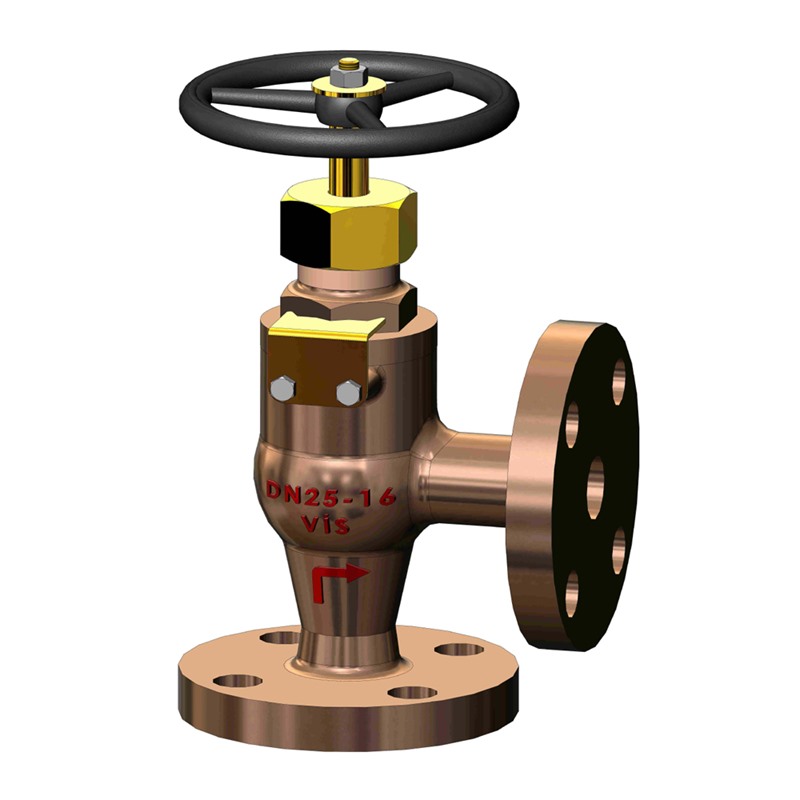

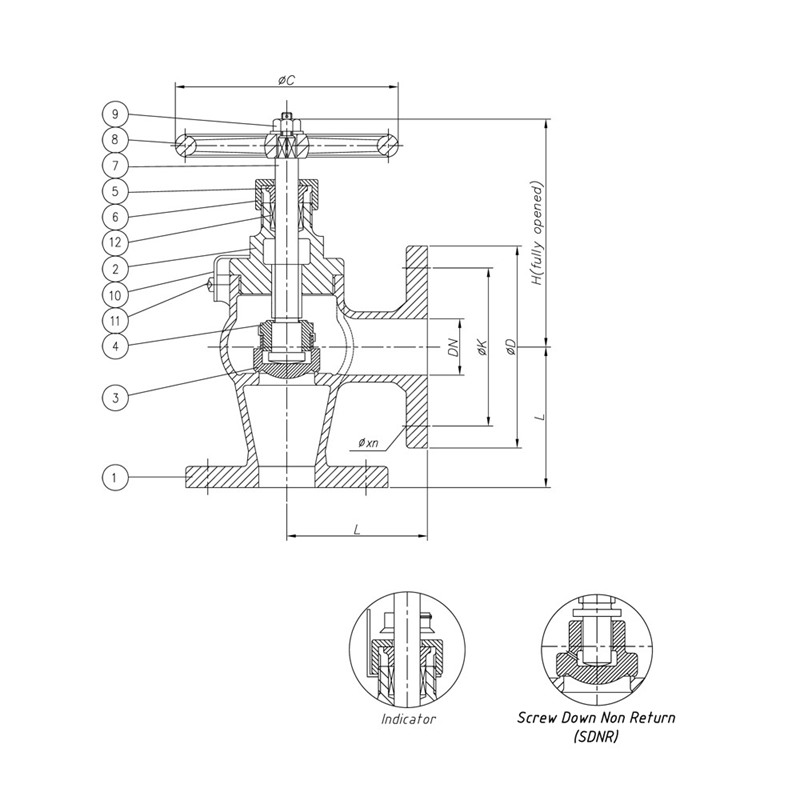

NO | PART NAME | MATERIAL |
|---|---|---|
1 | Body | Bronze Rg5 |
2 | Bonnet | Bronze Rg5 |
3 | Disc | Brass / Bronze |
4 | Disc Nut | Brass |
5 | Packing Gland | Brass |
6 | Gland Nut | Brass |
7 | Stem | Brass |
8 | Handwheel | GG 25 |
9 | Nut | Brass / SS 304 |
10 | Lock Plate | Brass / SS 304 |
11 | Screw | Brass / SS 304 |
12 | Packing | Graphite |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | Weight | IMPA Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| JIS | DN | L | H | C | D | K | Øxn | kg | IMPA STOP | IMPA SDNR |
| 16K | 15 | 70 | 120 | 80 | 95 | 70 | Ø15x4 | 2,73 | 750151 | 751081 |
| 20 | 75 | 130 | 100 | 100 | 75 | Ø15x4 | 3,65 | 750152 | 751082 | |
| 25 | 85 | 145 | 125 | 125 | 90 | Ø19x4 | 5,16 | 750153 | 751083 | |
| 32 | 95 | 150 | 125 | 135 | 100 | Ø19x4 | 6,72 | 750154 | 751084 | |
| 40 | 100 | 165 | 140 | 140 | 105 | Ø19x4 | 8,13 | 750155 | 751085 | |
| Design | : | JIS F7304 STOP / JIS F7410 SDNR |
| Pressure Rate | : | 16K |
| Size Range | : | DN15-DN40 |
| Temperature | : | Steam < 205 °C Water < 120 °C" |
| Flange Ends | : | JIS B2240 - 16K |
| Inspection | : | JIS F7400 |
| Application | : | Air, Gas, Oil, Pulsation Water |
