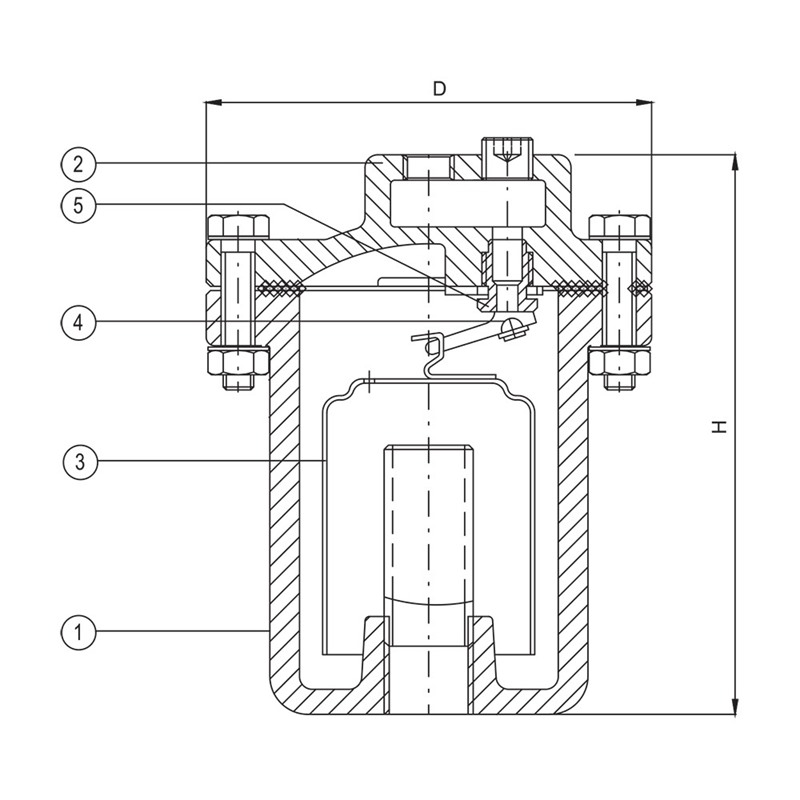

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25/ GGG-40 |
| 2 | Bonnet | GG 25/ GGG-40 |
| 3 | Bucket | 1,4301 |
| 4 | Valve | 1,4021 |
| 5 | Orifice | 1,4021 |
| Nominal Pressure | Nominal Diameter | Thread Dimensions ISO 228/1 | Weight | |||
|---|---|---|---|---|---|---|
| PN | DN | G | L | A | H | kg |
| 16 | 15 | 108 | 160 | R1/2" | R1/2" | 2.8 |
| 20 | 136 | 200 | R3/4" | R3/4" | 6 | |
| 25 | 184 | 270 | R1" | R1" | 13 | |
| 32 | 188 | 310 | R1 1/4" | R1 1/4" | 16 | |
| 40 | 216 | 360 | R1 1/2" | R1 1/2" | 24 | |
| 50 | 280 | 425 | R2" | R2" | 45 | |
| Pressure Rate | : | PN16 |
| Dimensions | : | ISO 228/1 Threaded |
| Size Range | : | DN 15-50 |
| Threaded Dimensions | : | R1/2"-R2" |
