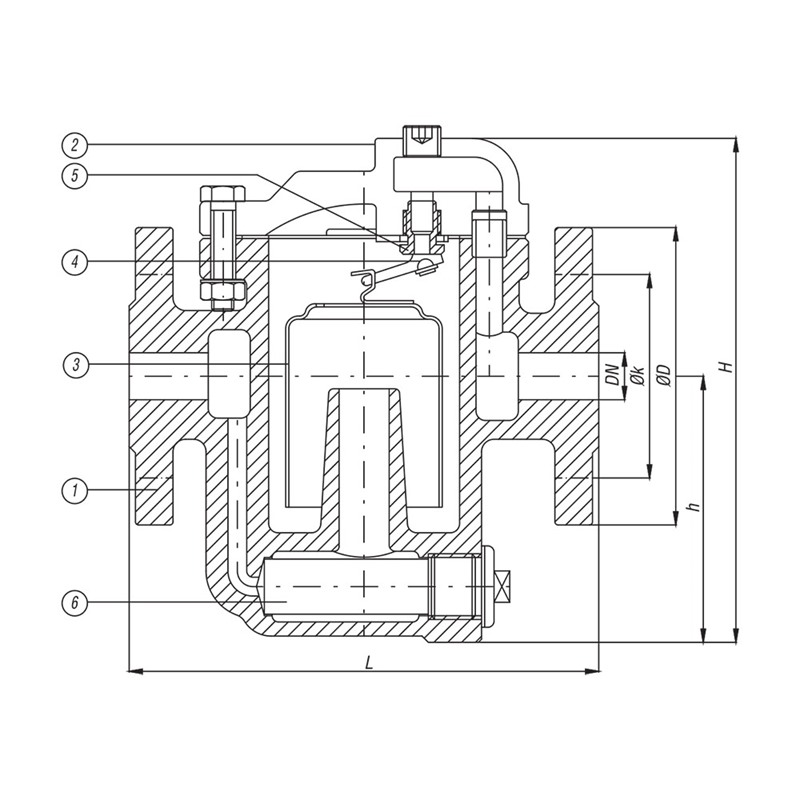

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG-40 |
| 2 | Cover | GG 25 / GGG-40 |
| 3 | Bucket | 1,4301 |
| 4 | Valve | 1,4021 |
| 5 | Orifice | 1,4021 |
| 6 | Filter | 1,4301 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | Flange Dimensions | DIN 2501 | Weight | ||
|---|---|---|---|---|---|---|---|
| PN | DN | L | h | H | D | k | kg |
| 16 | 15 | 156 | 81 | 150 | 95 | 65 | 4,2 |
| 20 | 200 | 146 | 238 | 105 | 75 | 9 | |
| 25 | 240 | 187 | 320 | 115 | 85 | 17 | |
| 32 | 260 | 187 | 320 | 140 | 100 | 21 | |
| 40 | 280 | 200 | 370 | 150 | 110 | 29 | |
| 50 | 300 | 200 | 370 | 165 | 125 | 30 | |
| Pressure Rate | : | PN16 |
| Dimensions | : | DIN 2501 Flange |
| Size Range | : | DN 15-50 |
