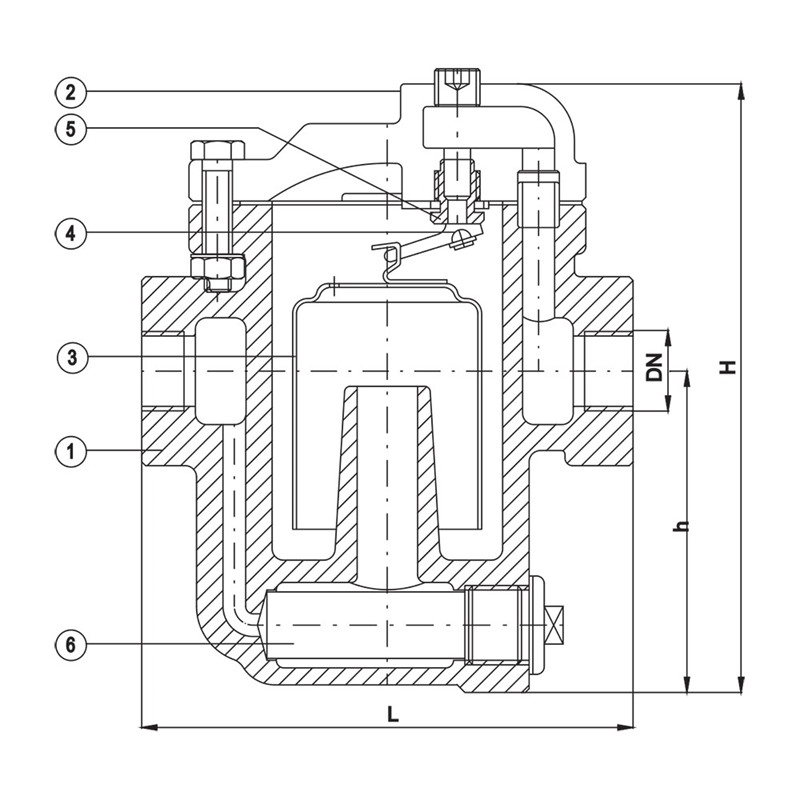

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG-40 |
| 2 | Bonnet | GG 25 / GGG-40 |
| 3 | Bucket | 1,4301 |
| 4 | Valve | 1,4021 |
| 5 | Orifice | 1,4021 |
| 6 | Filter | 1,4301 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | Threaded Dimensions ISO 228/1 | Weight | ||
|---|---|---|---|---|---|---|
| PN | DN | L | h | H | DN | kg |
| 16 | 15 | 125 | 81 | 150 | 1/2" | 3,1 |
| 20 | 170 | 146 | 238 | 3/4" | 8,5 | |
| 25 | 207 | 187 | 320 | 1" | 16 | |
| 32 | 230 | 187 | 320 | 1 1/4" | 20 | |
| Pressure Rate | : | PN16 |
| Dimensions | : | ISO 228/1 |
| Threaded | ||
| Size Range | : | DN 15-32 |
