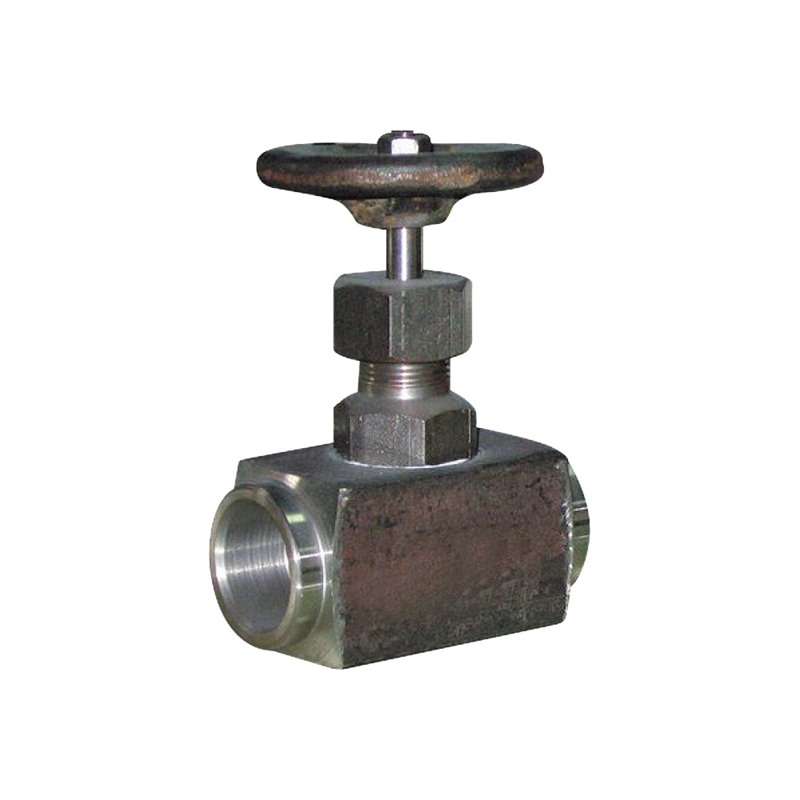

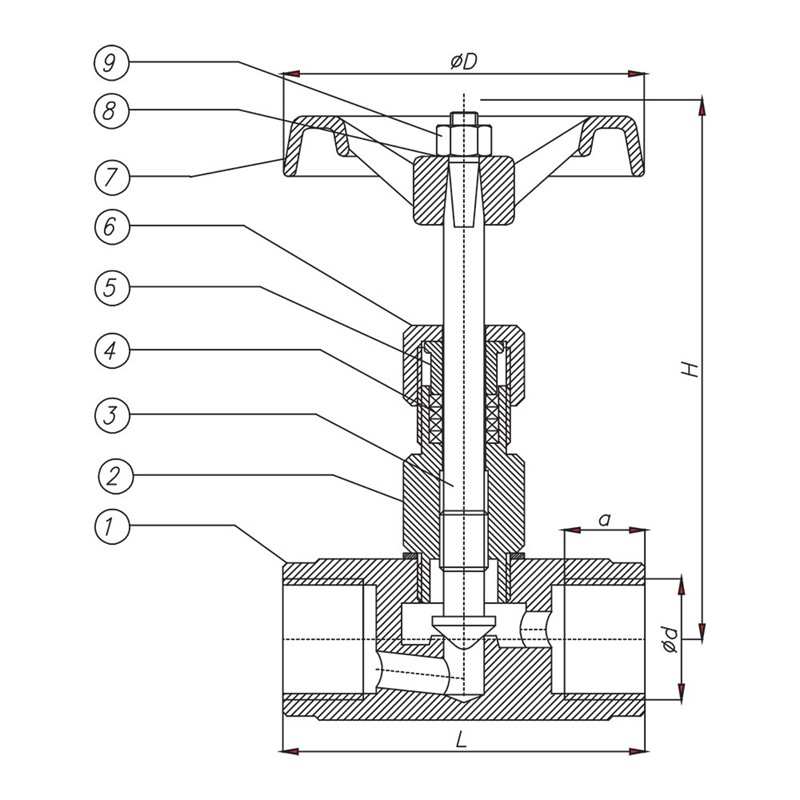

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Brass / ASTM A 105 / SS |
| 2 | Bonnet | Brass / ASTM A 105 / SS |
| 3 | Stem/Disc | Brass / AISI 420 / AISI 316 |
| 4 | Packing | Graphite |
| 5 | Packing Bush | Brass / SS |
| 6 | Packing Nut | Brass / SS |
| 7 | Handwhell | Aluminium / CI / SS |
| 8 | Washer | Brass / SS |
| 9 | Nut | Stainlees Steel |
| DN | 4 | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|---|---|---|
| Ød | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" |
| a | 11 | 12 | 14 | 17 | 20 | 22 | 25 | 28 | |
| L | 50 | 55 | 65 | 75 | 90 | 95 | 100 | 112 | |
| H | 85 | 95 | 112 | 122 | 146 | 173 | 192 | 216 | |
| ØD | 60 | 75 | 90 | 100 | 125 | ||||
| Kg | 04 | 0,50 | 0,100 | 1,050 | 2,45 | 3,20 | 4,35 | 7,30 | |
| DN | Stock Code | DN | Stock Code |
|---|---|---|---|
| 4 | 25 | ||
| 6 | 32 | ||
| 10 | 40 | ||
| 15 | 50 | ||
| 20 |
| Size Range | : | 1/8".....2" |
| Pressure | : | PN 0-250 |
| CLASS 150....CLASS 1500 | ||
| Temperature | : | Min. -60 °C Max. +500°C |
| Dimensions | : | Threaded EN 10226-1 |
| NPT Threaded ANSI-B16.11 | ||
