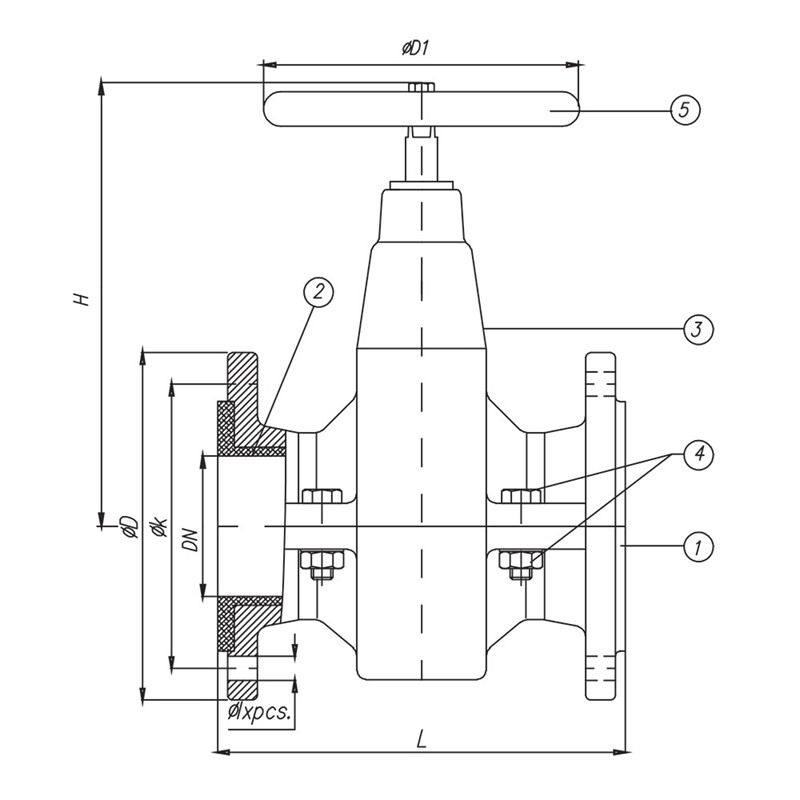

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Upper Body | GG 25 / GGG-40 / GS-C 25 |
| 2 | Sleeve | NBR / NR |
| 3 | Top Body | GG 25 / GGG-40 / GS-C 25 |
| 4 | Bolt / Nut | 8,8 / 8 |
| 5 | Handwheel | GG 25 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions DIN 3202/2-F5/F15 | PN10 Flange Dimensions DIN EN 1092-1-2 | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|
| PN | DN | L | H | D1 | D | k | b | Ixpcs | kg |
| 10 | 40 | 165 | 100 | 160 | 150 | 110 | 18 | 18X4 | 5 |
| 50 | 178 | 110 | 160 | 165 | 125 | 20 | 18X4 | 8 | |
| 65 | 190 | 140 | 160 | 185 | 145 | 20 | 18X4 | 15 | |
| 80 | 203 | 160 | 160 | 200 | 160 | 22 | 18X8 | 20 | |
| 100 | 300 | 200 | 200 | 220 | 180 | 24 | 18X8 | 25 | |
| 125 | 325 | 250 | 250 | 250 | 210 | 26 | 18X8 | 30 | |
| 150 | 350 | 300 | 250 | 285 | 240 | 26 | 22X8 | 40 | |
| 200 | 400 | 400 | 250 | 340 | 295 | 26 | 22X8 | 50 | |
| 250 | 450 | 500 | 315 | 395 | 350 | 28 | 22X12 | 105 | |
| 300 | 500 | 600 | 315 | 445 | 400 | 28 | 22X12 | 140 | |
| Pressure Rate | : | PN 10 |
| Flange Ends | : | DIN EN 1092-1-2 |

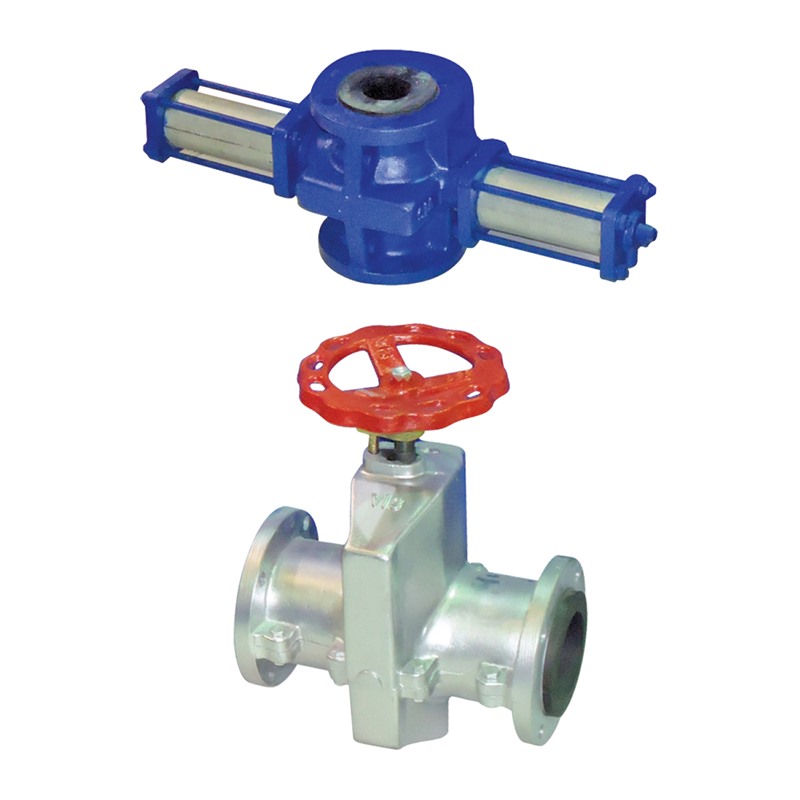

| Operation | : | Manual, Pneumatic |
