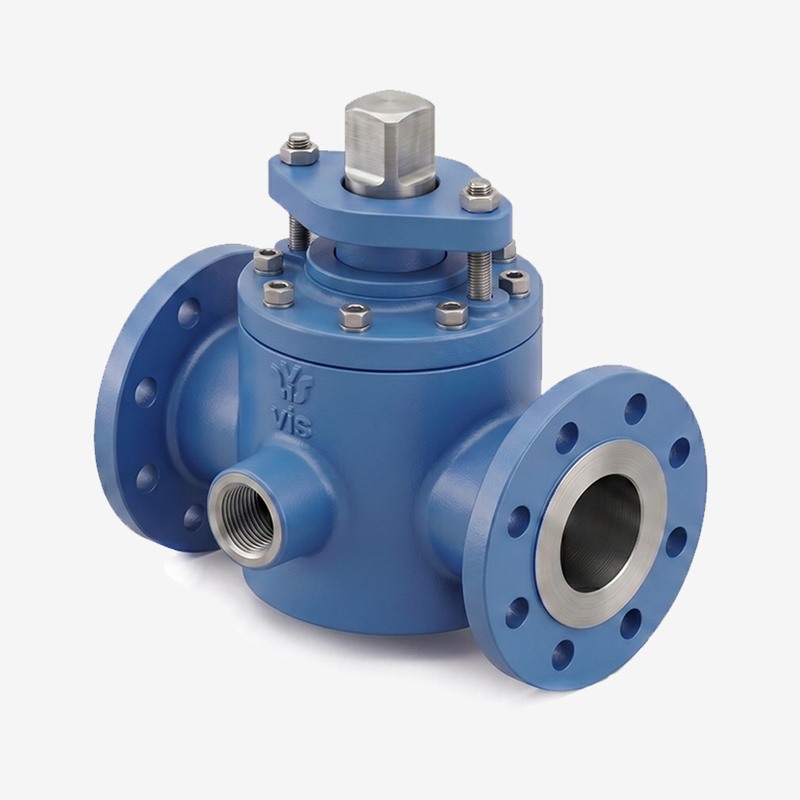

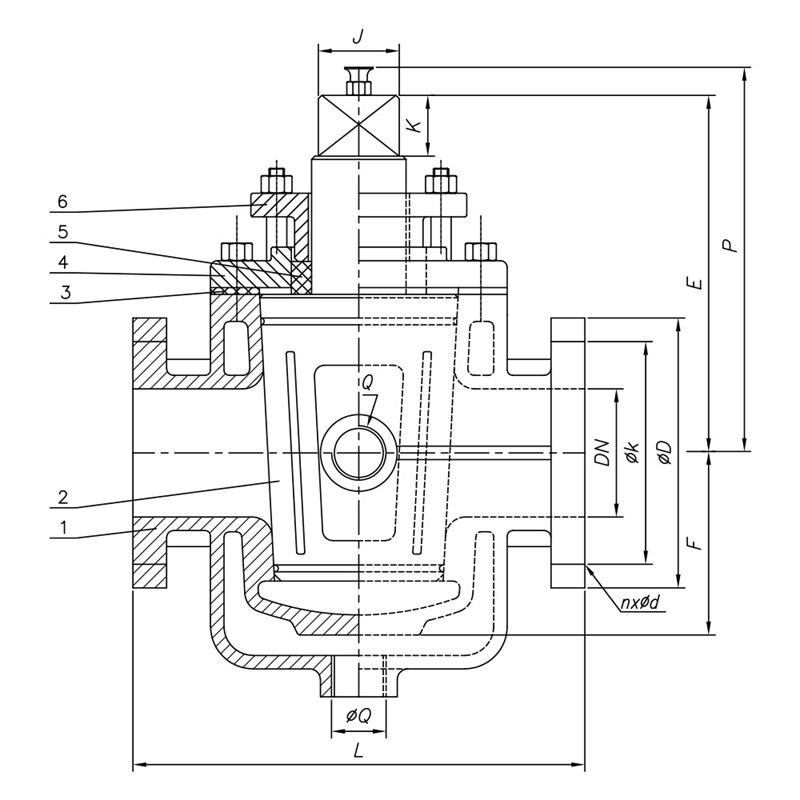

No. | Part Name | Material |
1 | Body | GG25/GGG40/GSC25/304/316 |
2 | Plug | GG25/GGG40/GSC25/304/316 |
3 | Gasket | Klingerit/Graphite |
4 | Bonnet | GG25/GGG40/GSC25/304/316 |
5 | Packing | Graphite |
6 | Gland | GG25/GGG40/GSC25/304/316 |
DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |
Max.WP | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |
L | 178 | 191 | 203 | 229 | 254 | 267 | 292 | |
E | 160 | 173 | 211 | 230 | 265 | 292 | 327 | |
J | 27 | 32 | 37 | 41 | 41 | 54 | 54 | |
K | 27 | 32 | 38 | 46 | 46 | 60 | 60 | |
Q | 3/4" | 1" | 1" | 1" | 1" | 1" | 1" | |
PN 16 | ØD | 165 | 185 | 200 | 220 | 250 | 285 | 340 |
PN 16 | Øk | 125 | 145 | 160 | 180 | 210 | 240 | 295 |
PN 16 | n x Ød | 4x18 | 4x18 | 8x18 | 8x18 | 8x18 | 8x22 | 12x22 |
PN 25 | ØD | 165 | 185 | 200 | 235 | 270 | 300 | 360 |
PN 25 | Øk | 125 | 145 | 160 | 190 | 220 | 250 | 310 |
PN 25 | n x Ød | 4x18 | 8x18 | 8x18 | 8x22 | 8x26 | 8x26 | 12x26 |
PN 40 | ØD | 165 | 185 | 200 | 235 | 270 | 300 | 375 |
PN 40 | Øk | 125 | 145 | 160 | 190 | 220 | 250 | 320 |
PN 40 | n x Ød | 4x18 | 8x18 | 8x18 | 8x22 | 8x26 | 8x26 | 12x30 |
CL150 | ØD | 152.5 | 178 | 190.5 | 228.5 | 254 | 279.5 | 343 |
CL150 | Øk | 120.7 | 139.7 | 152.4 | 190.5 | 215.9 | 241.3 | 298.5 |
CL150 | n x Ød | 4x19 | 4x19 | 4x19 | 8x19 | 8x22 | 8x22 | 8x22 |
Kg | 15 | 20 | 28 | 32 | 60 | 87 | 105 |
Design | : | ASME B16.34 |
Face to face | : | EN 5558 Series 3, ASME B16.10 |
Size Range | : | DN50-DN200 |
Pressure Range | : | Max.WP [Bar] (Ref. Tablo) |
Ends Connection | : | RF Flanges, EN 1092 / ASME B16.5 |
Temprature Range | : | -10°C ~ 425°C |
| Application | : | Bitüm, Asfalt, Pitch |
