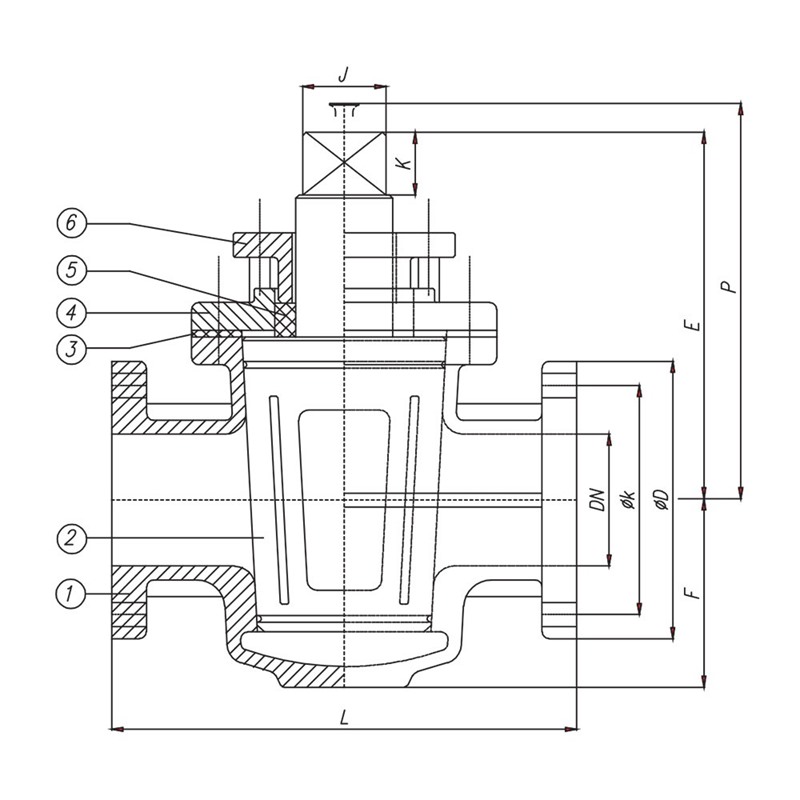

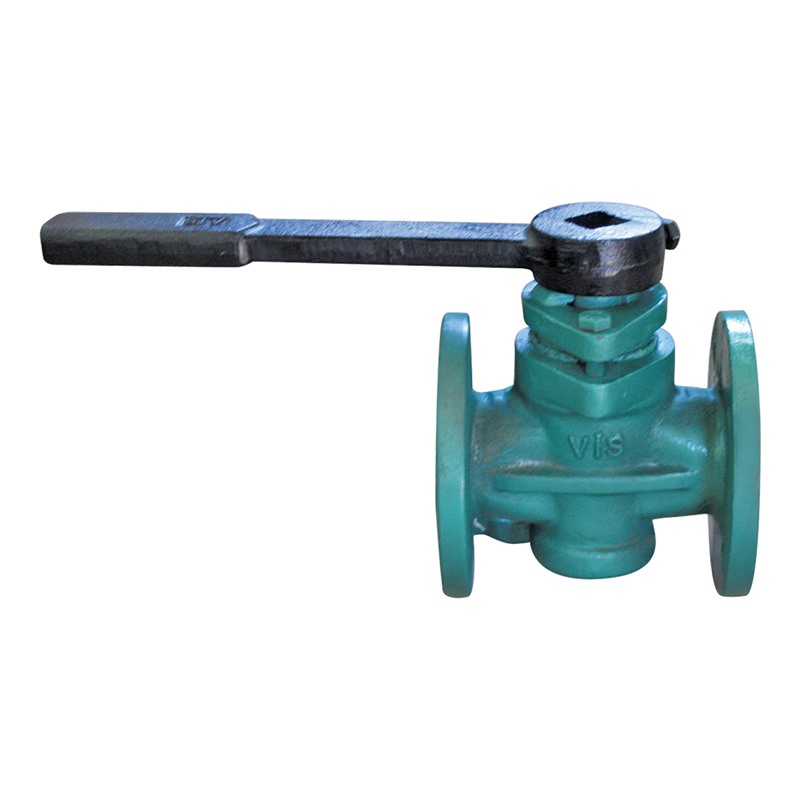

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG-40 / GS-C 25 |
| 2 | Plug | GG 25 / GGG-40 / GS-C 25 |
| 3 | Gasket | EPDM / Klingerit |
| 4 | Bonnet | GG 25 / GGG-40 / GS-C 25 |
| 5 | Packing | PTFE |
| 6 | Gland | GG 25 / GGG-40 / GS-C 25 |
| Nominal Pressure | Nominal Diameter | Valve Dimensions BS 1735 DIN EN 558-1/1 | PN10-16 Flange Dimensions DIN EN 1092-1/2 | PN40 Flange Dimensions DIN EN 1092-1/2 | ANSI 125-150 Flange Dimensions | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PN | DN | L | E | F | P | J | K | D | k | D | k | D | k | kg |
| 10-16 | 50 | 230 | 160 | 70 | 225 | 27 | 27 | 165 | 125 | 165 | 125 | 152,4 | 120,7 | 15 |
| 65 | 290 | 173 | 85 | 254 | 32 | 32 | 185 | 145 | 185 | 145 | 178 | 139,7 | 20 | |
| 80 | 310 | 211 | 100 | 292 | 37 | 38 | 200 | 160 | 200 | 160 | 191 | 152,4 | 28 | |
| 100 | 350 | 230 | 114 | 350 | 41 | 46 | 220 | 180 | 235 | 190 | 229 | 190,5 | 32 | |
| 125 | 400 | 265 | 124 | 365 | 41 | 46 | 250 | 210 | 270 | 220 | 254 | 216 | 60 | |
| 150 | 480 | 292 | 162 | 422 | 54 | 60 | 285 | 240 | 300 | 250 | 279,5 | 241,3 | 87 | |
| 200 | 600 | 327 | 192 | 457 | 54 | 60 | 340 | 295 | 375 | 320 | 343 | 298,5 | 105 | |
| Pressure Rate | : | PN10-PN16-PN40, ASA 125, ASA 150 |
| Size Range | : | DN50-DN200 |
