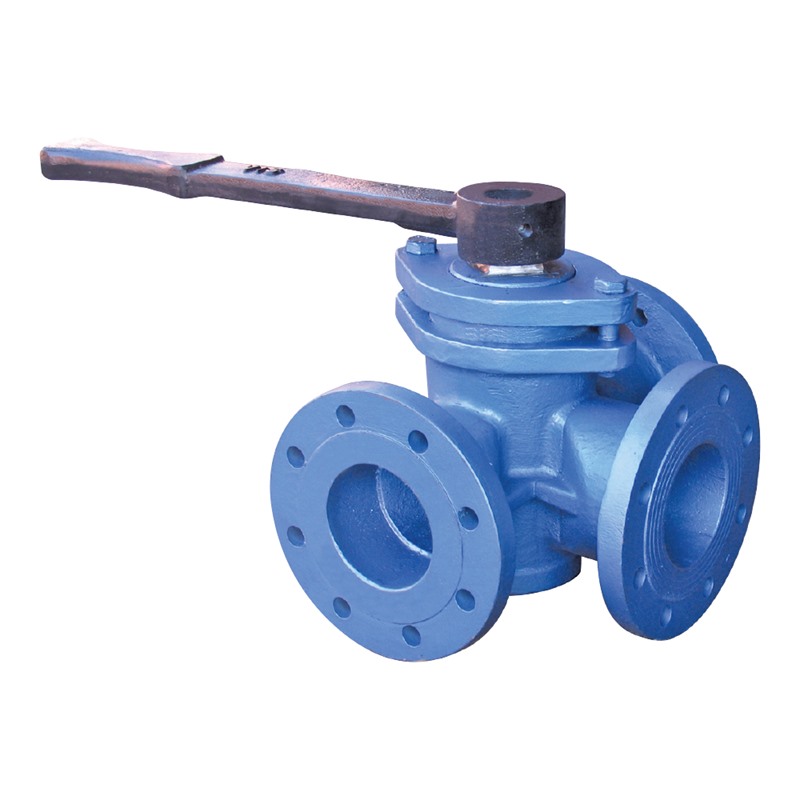

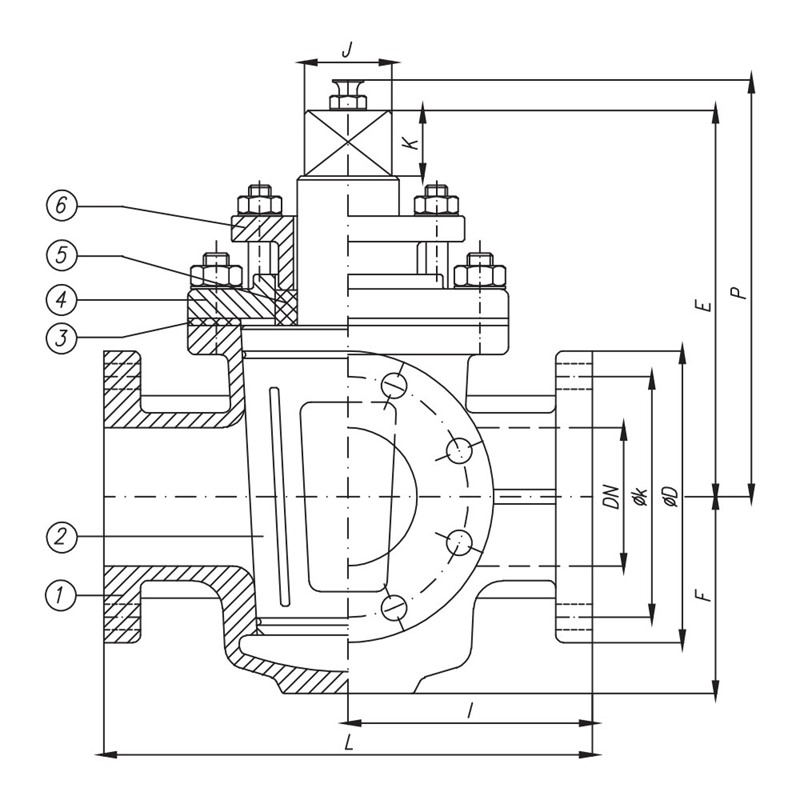

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Bronze Rg-5 |
| 2 | Plug | Bronze Rg-5 |
| 3 | Gasket | EPDM / Klingerit |
| 4 | Bonnet | Bronze Rg-5 |
| 5 | Packing | PTFE + Graphite |
| 6 | Gland | Bronze Rg-5 |
| Pressure | PN | PN 10 / PN 16 | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal Diameter | DN | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |
| Valve Dimensions BS 1735 | L | 165 | 203 | 222 | 241 | 267 | 305 | 256 | |
| I | 130 | 150 | 175 | 190 | 210 | 265 | 310 | ||
| E | 149 | 165 | 189 | 211 | 246 | 260 | 304 | ||
| F | 57 | 65 | 79 | 95 | 114 | 143 | 175 | ||
| P | 214 | 230 | 270 | 292 | 340 | 360 | 405 | ||
| j | 27 | 32 | 38 | 41 | 48 | 51 | |||
| K | 27 | 32 | 38 | 51 | |||||
| Flange Dimensions DIN EN 1092 | PN 10 | D | 115 | 140 | 150 | 165 | 185 | 200 | 220 |
| PN 16 | k | 85 | 100 | 110 | 125 | 145 | 160 | 180 | |
| ASA 125 / ASA 150BS 4504 | PN 40 | D | 115 | 140 | 150 | 165 | 185 | 200 | 235 |
| K | 85 | 100 | 110 | 125 | 145 | 160 | 190 | ||
| ASA 125 | D | 108 | 117 | 127 | 152,4 | 178 | 191 | 229 | |
| ASA150 | k | 79 | 89 | 98,5 | 120,7 | 139,7 | 152,4 | 190,5 | |
| Weight | kg | 6,5 | 10,5 | 12 | 20,5 | 28 | 36 | 66 | |
| DN | Stock Code | DN | Stock Code |
|---|---|---|---|
| 25 | 65 | ||
| 32 | 80 | ||
| 40 | 100 | ||
| 50 |
| Pressure Rate | : | PN 10-16 |
| Size Range | : | DN25- DN100 |
| Flange Ends | : | DIN EN 1092 |
| BS 4504 / ASA 125 / ASA 150 | ||
