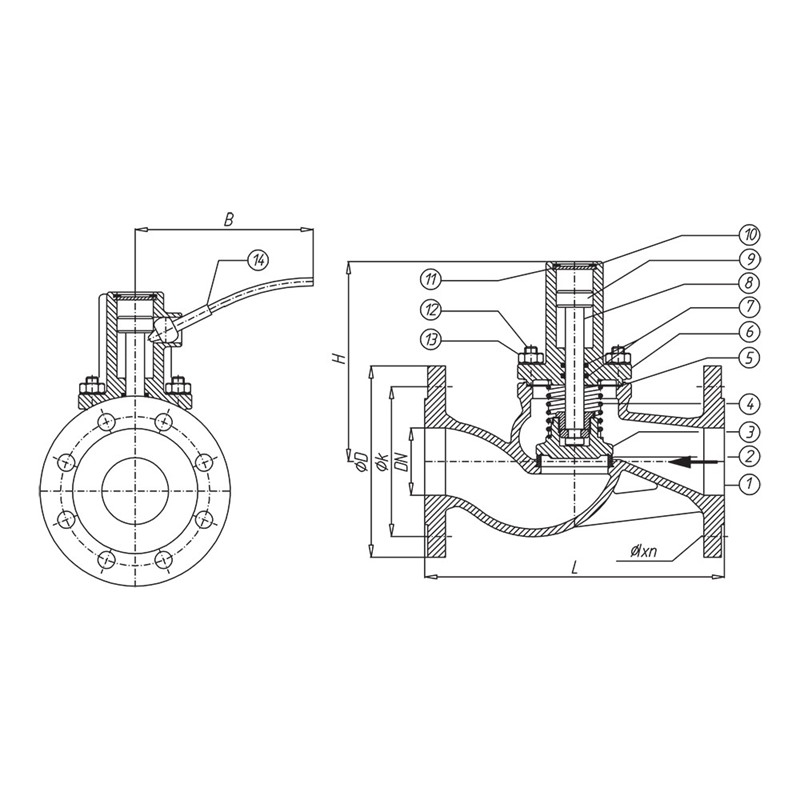

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GGG40/GGG40.3/GSC25/Bronze RGS, RG7, RGl0, CuSnl 0/SS304,SS316, Duplex 1.4470 |
| 2 | Seat Ring | AISI 304/AISI 316/Bronze RGS/Duplex |
| 3 | Disc | AISI 420/AISI 304/AISI 316/Bronze RGS/Duplex |
| 4 | Spring | AISI 302 |
| 5 | Gasket | Klingerite / Grophite |
| 6 | Bonnet | GGG40/GGG40.3/GSC25/Bronze RGS, RG7, RGl0, CuSnl 0/SS304,SS316, Duplex 1.4470 |
| 7 | O-Ring | Viton |
| 8 | Stem | AISI 420/AISI 304/AISI 316/Bronze RGS/Duplex |
| 9 | Stem Disc | AISI 420/AISI 304/AISI 316/Bronze RGS/Duplex |
| 10 | Segment | Steel |
| 11 | Washer | Steel / SS304 / SS3l 6 |
| 12 | Stud | Steel / A2 / A4 |
| 13 | Nut | Steel / A2 / A4 |
| 14 | Handlever | Steel / SS304 / SS3l 6 |
| Nominal Pressure | PN | CLASS 150 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Diameter | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |||
| Valve Dimensions DIN 3202/2-F1 DIN EN 558-1-1 | L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | |||
| B | 290 | 150 | |||||||||||
| H OPEN | 110 | 120 | 140 | 145 | 156 | 180 | 200 | ||||||
| Flange Dimensions ANSI B16,5 RF Class 150 | DN | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | |||
| k | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | ||||
| Øxn | Ø16x4 | Ø19x4 | Ø19x4 | ||||||||||
| Weight | kg | 4,2 | 4,7 | 5 | 6,5 | 8,5 | 9 | 10,5 | 13 | 18 | |||
| DN | Stock Code | DN | Stock Code |
|---|---|---|---|
| 15 | 50 | ||
| 20 | 65 | ||
| 25 | 80 | ||
| 32 | 100 | ||
| 40 |
| Pressure Rate | : | CLASS 150 |
| Size Range | : | DN15 - DN 100 |
| Dimensions | : | DIN 3202 / 2-F (Straight) |
| Flange Ends | : | ANSI B165 RF |
| Tests | : | API 598 / DIN EN 12266 |
| Options | : | ANSI JIS Flanges |
