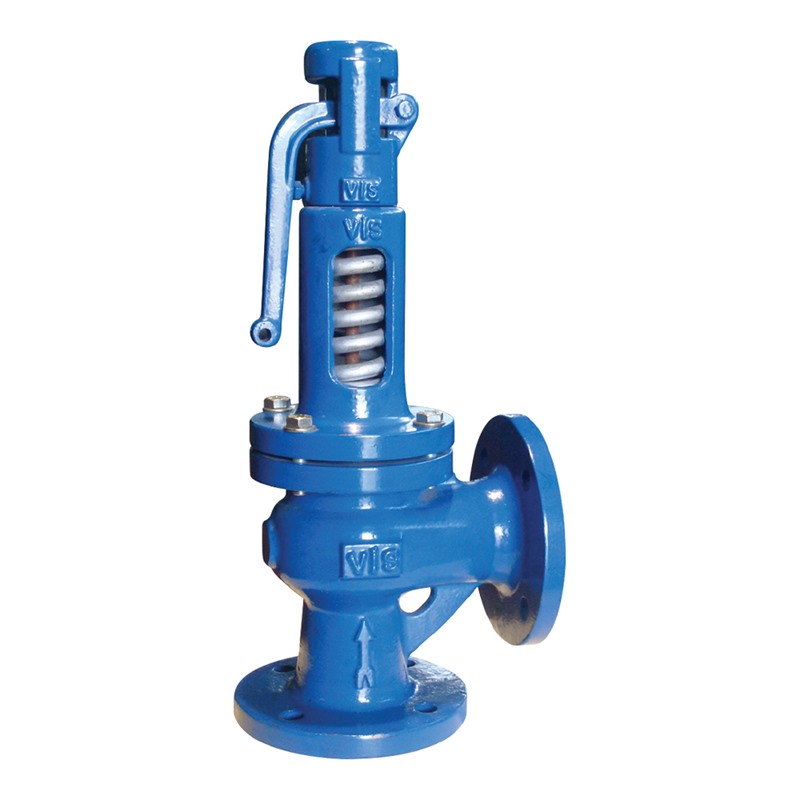

Safety Valves (Spring Loaded) Full Lift VEYT-10-16-25-40 Proportional Lift VEYO-10-16-25-40

VEYT-10-16-25-40 VEYO-10-16-25-40

DATASHEET

PRODUCT FEATURES

TECHNICAL SPECIFICATIONS

PRODUCT DESCRIPTIONS

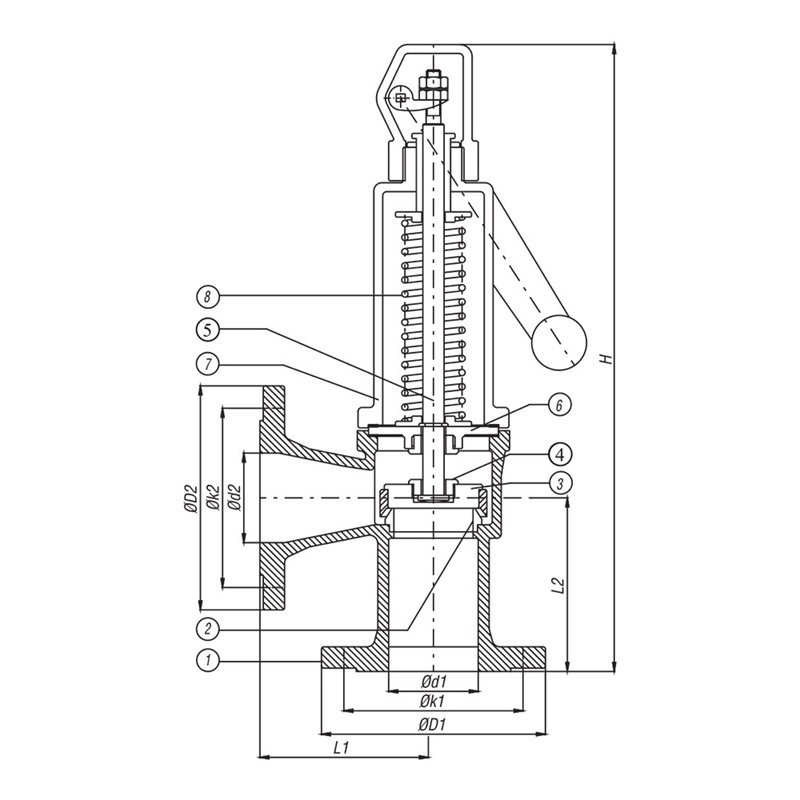

NO	PART NAME	MATERIAL
1	Body	GG 25/ GGG-40 / GC-S 25
2	Seat Ring	AISI 304
3	Disc	AISI 304
4	Disc Nut	Ms 58
5	Spindle	1,4021
6	Plate	GG 25 / GGG-40
7	Bonnet	GG 25 / GGG-40 / GS-C 25
8	Spring	1,4310

Nominal Diameter	Valve Dimensions			Ends
				DIN 2532 / DIN 2533 PN 10-16							DN 2544 / DIN 2545 PN 25-40
				Inlet			Outlet			Weight	Inlet			Outlet			Weight
DN	L1	L2	H	Ød1	ØD1	Øk1	Ød2	ØD2	Øk2	kg	Ød1	ØD1	Øk1	Ød2	ØD2	Øk2	kg
25	100	115	410	25	115	85	40	150	110	10	25	115	85	40	150	110	11
32	110	125	426	32	140	100	50	165	125	13	32	140	100	50	165	125	15
40	120	135	446	40	150	110	65	185	145	16	40	150	110	65	185	145	18
50	135	150	484	50	165	125	80	200	160	21	50	165	125	80	200	160	24
65	140	155	549	65	185	145	100	220	180	30	65	185	145	100	235	190	34
80	150	175	631	80	200	160	125	250	210	40	80	200	160	125	270	220	45
100	170	195	686	100	220	180	150	285	240	57	100	235	190	150	300	250	64

Nominal Pressure	:	PN10-16-25-40
Nominal Diameter	:	DN25-DN100
Temperature	:	+80°C
Flange Ends	:	DIN 2533
Dimensions	:	DIN 3202-F32 (Açık)
