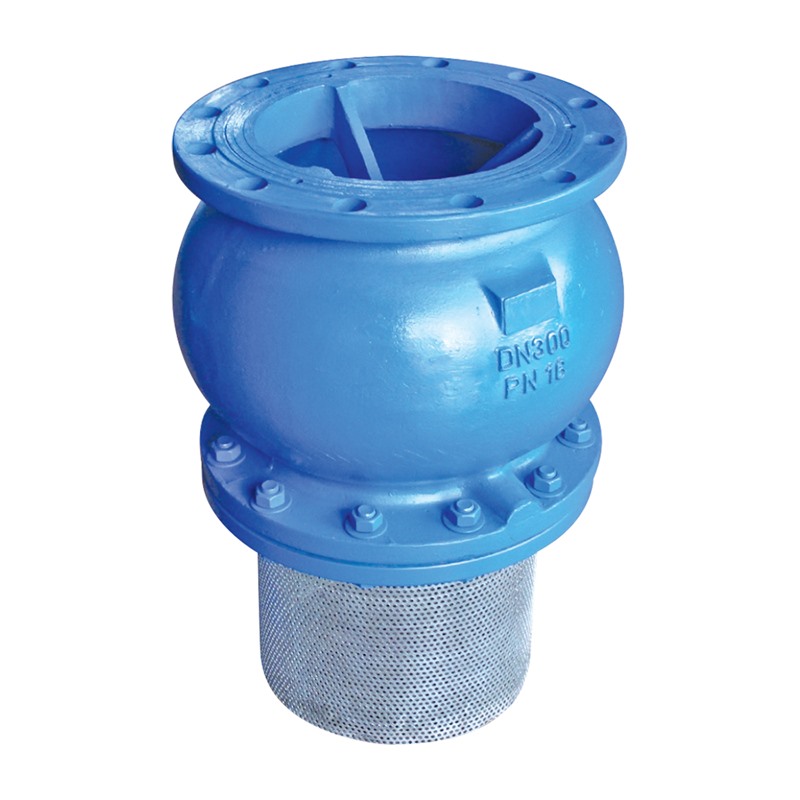

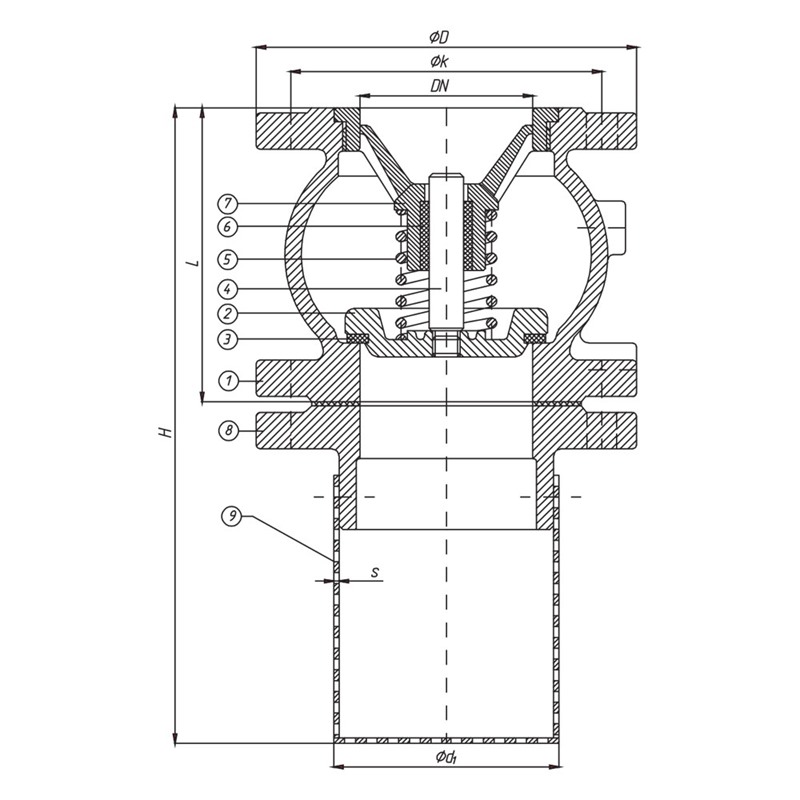

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GGG25/GGG-40,3/G-SC25/Bronze/SS(Pas.Çelik) |
| 2 | Disc | GGG 25/GGG-40/SS/ Bronze |
| 3 | Seats | NBR/EPDM/SS/Bronze |
| 4 | Spindle | AISI 420-304-316/ CuSn8 |
| 5 | Spring | AISI 302(1,4310) |
| 6 | Ring | SS/Bronze/PTFE |
| 7 | Guide | GG 25/GGG-40/G-SC 25 |
| 8 | Flange | GG 25/GGG-40,3/G-SC25/Bronze/SS(Pas.Çelik) |
| 9 | Basket | AISI 304-316/Brass/Copper |
| Nominal Pressure | Nominal Diameter | Valve Dimensions DIN 3259 | PN10 Flange Dimensions DIN EN 1092 | PN16 Flange Dimensions DIN EN 1092 | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PN | DN | Ød3 | Ød | h1 | D | k | Øxn | D | k | Øxn | kg |
| 10/16 | 50 | 180 | 77 | 175 | 165 | 125 | Ø18x4 | 165 | 125 | Ø18x4 | 7 |
| 65 | 190 | 92 | 215 | 185 | 145 | Ø18x4 | 185 | 145 | Ø18x4 | 9 | |
| 80 | 210 | 127 | 265 | 200 | 160 | Ø18x8 | 200 | 160 | Ø18x8 | 12 | |
| 100 | 240 | 142 | 315 | 220 | 180 | Ø18x8 | 220 | 180 | Ø18x8 | 19 | |
| 125 | 280 | 188 | 335 | 250 | 210 | Ø18x8 | 250 | 210 | Ø18x8 | 23 | |
| 150 | 335 | 217 | 410 | 285 | 240 | Ø22x8 | 285 | 240 | Ø22x8 | 40 | |
| 200 | 365 | 282 | 470 | 340 | 295 | Ø22x8 | 340 | 295 | Ø22x12 | 65 | |
| 250 | 405 | 325 | 500 | 395 | 350 | Ø22x12 | 395 | 350 | Ø26x12 | 95 | |
| 300 | 505 | 420 | 600 | 445 | 400 | Ø22x12 | 445 | 400 | Ø26x12 | 170 | |
| 350 | 555 | 470 | 750 | 505 | 460 | Ø22x16 | 505 | 460 | Ø26x16 | 230 | |
| 400 | 675 | 520 | 800 | 565 | 515 | Ø26x16 | 565 | 515 | Ø30x16 | 300 | |
| 500 | 775 | 620 | 950 | 670 | 620 | Ø26x20 | 715 | 650 | Ø33x20 | 450 | |
| 600 | 875 | 520 | 1250 | 780 | 725 | Ø30x20 | 840 | 770 | Ø36x20 | 655 | |
| Pressure Rate | : | PN10-16 / CLASS 150 |
| Size Range | : | DN40-DN600 |
| Flange Ends | : | EN 1092-2/B - ASME B16.5 |
| Tests | : | EN 12266 & API 598 |
