| PRESSURE-TEMPERATURE | |
|---|---|
| °C | -10………120 |
| PN | 16 |

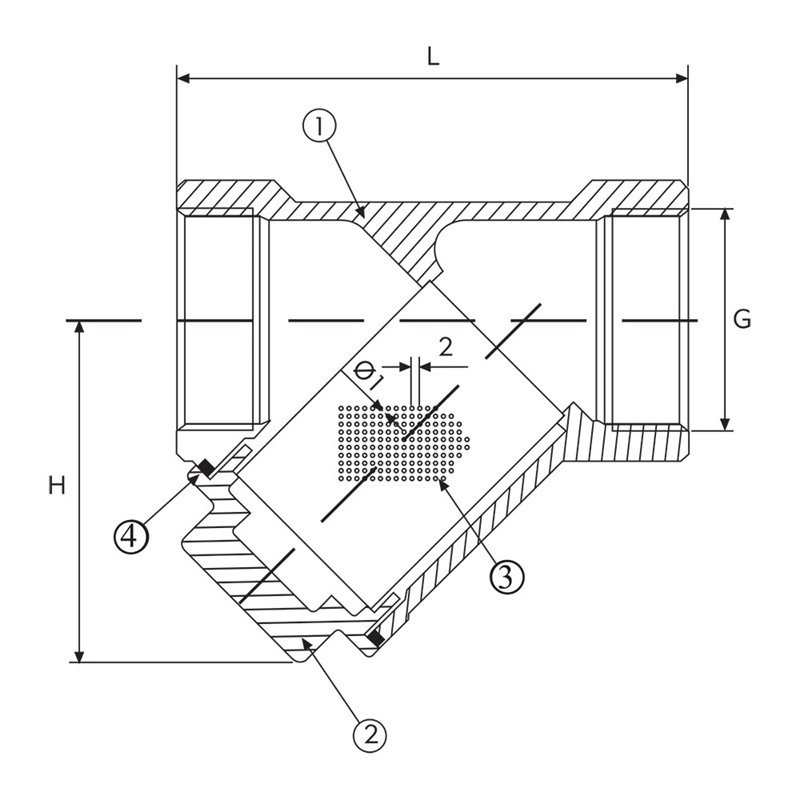

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Stainless Steel AISI 304/316 |
| 2 | Bonnet | Stainless Steel AISI 304/316 |
| 3 | Fiter | Stainless Steel AISI 304/316 |
| 4 | Gasket | PTFE |
| Nominal Pressure | Nominal Diameter | Valve Dimensions | Weight | ||
|---|---|---|---|---|---|
| PN | DN | G | L | k | kg |
| PN40 | 15 | 1/2" | 65 | 51 | 0,23 |
| 20 | 3/4" | 80 | 60 | 0,36 | |
| 25 | 1" | 90 | 72 | 0,69 | |
| 32 | 1-1/4" | 105 | 77 | 0,78 | |
| 40 | 1-1/2" | 120 | 87 | 1,22 | |
| 50 | 2" | 140 | 103 | 1,79 | |
| Pressure Rate | : | PN40 |
| Size Range | : | 1/2"-2" |
| Material | : | SS.304/ SS.316 |
| Tests | : | EN 12266 & API 598 |
