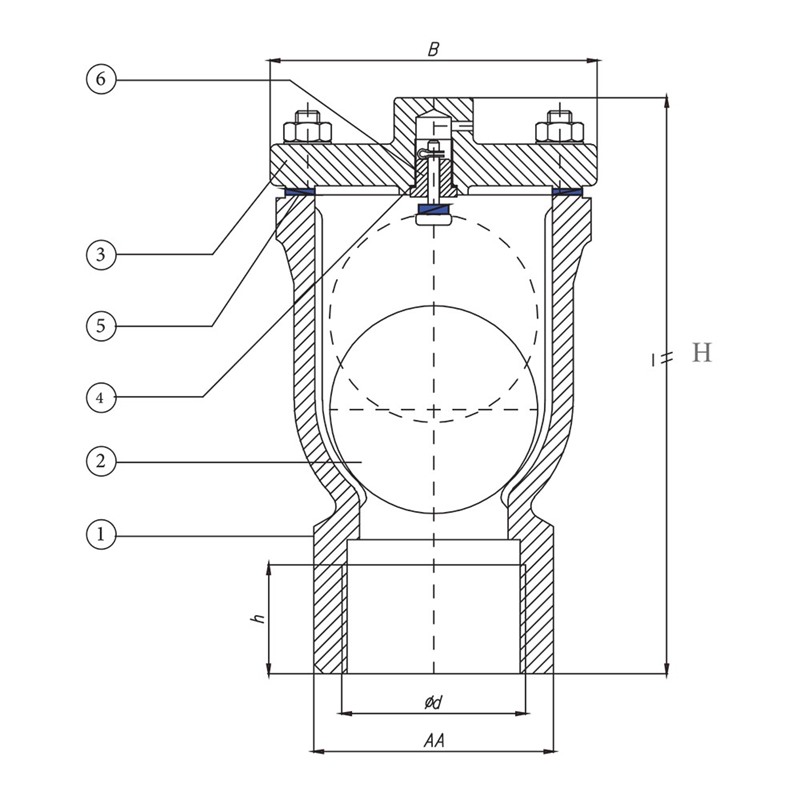

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | GG 25 / GGG-40 / GS-C 25 |
| 2 | Ball | PVC / PTFE |
| 3 | Cover | GG 25 / GGG-40 / GS-C 25 |
| 4 | Seal | EPDM / NBR / TEFLON |
| 5 | Gasket | EPDM / KLINGERIT |
| 6 | Nozzle | Ms 58 / Brass |
| Nominal Diameter | Valve Dimensions | PN10/16 Flange Dimensions | ||||
|---|---|---|---|---|---|---|
| DN | B | H | Ød | h | AA | Weight |
| 25 | 160 | 210 | R 1" | 25 | 46 | 5 |
| 40 | 160 | 220 | R 1 1/2" | 35 | 60 | 6 |
| 50 | 160 | 230 | R2" | 40 | 75 | 7 |
| 80 | 250 | 290 | R3" | 40 | 105 | 13 |
| 100 | 270 | 330 | R4" | 45 | 125 | 15 |
| Pressure Rate | : | PN 16-25-40 |
| Size Range | : | DN25-DN100 |
| Ends | : | EN 10226-1 |
| Threaded | ||
