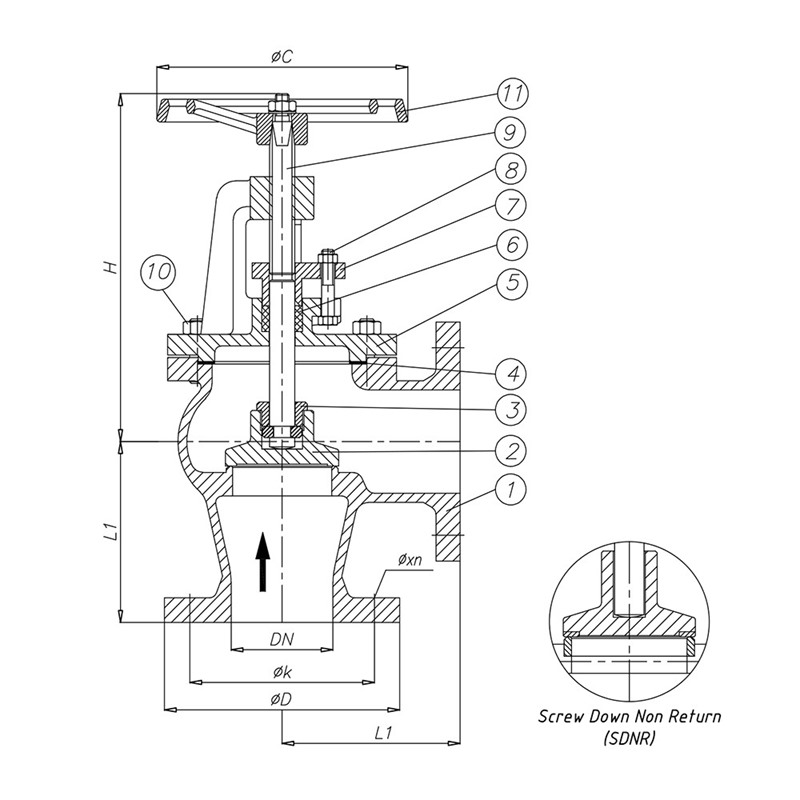

| NO | PARÇA ADI | MALZEME |
|---|---|---|
| 1 | Gövde | Bronze Rg5 |
| 2 | Klape | Bronze Rg5 |
| 3 | Baskı | Brass Ms58 |
| 4 | Conta | Klingerite |
| 5 | Kapak | Bronze Rg5 |
| 6 | Salmastra | Graphite |
| 7 | Baskı | Bronze Rg5 |
| 8 | Cıvata/Somun | A2 (SS304) |
| 9 | Mil | CuZn39Pb3 |
| 10 | Cıvata/Somun | A2 (SS304) |
| 11 | Volan | GG 25 |
| DN | L | H | C | D | K | Øxn | kg |
|---|---|---|---|---|---|---|---|
| 15 | 65 | 157 | 120 | 95 | 65 | Ø14x4 | 4 |
| 20 | 65 | 175 | 120 | 105 | 75 | Ø14x4 | 5.5 |
| 25 | 70 | 190 | 140 | 115 | 85 | Ø14x4 | 6.5 |
| 32 | 90 | 205 | 140 | 140 | 100 | Ø18x4 | 8.5 |
| 40 | 90 | 215 | 160 | 150 | 110 | Ø18x4 | 10 |
| 50 | 105 | 235 | 160 | 165 | 125 | Ø18x4 | 13 |
| 65 | 115 | 260 | 180 | 185 | 145 | Ø18x4 | 23 |
| 80 | 125 | 265 | 200 | 200 | 160 | Ø18x8 | 31 |
| 100 | 145 | 285 | 225 | 220 | 180 | Ø18x8 | 41 |
| 125 | 170 | 310 | 250 | 250 | 210 | Ø18x8 | 65 |
| 150 | 200 | 340 | 300 | 285 | 240 | Ø22x8 | 90 |
| 200 | 250 | 570 | 400 | 340 | 295 | Ø22x12 | 127 |
| Dizayn | : | DIN 3356-1 Short Pattern |
| L Boyu | : | VisVana Design |
| Basınç | : | PN 16 |
| Ölçü Aralığı | : | DN15-DN200 |
| Flanş | : | EN 1092-3 |
| Opsiyon | : | SDNR Type, Regulating Disc |
| Testler | : | EN 12266 |
