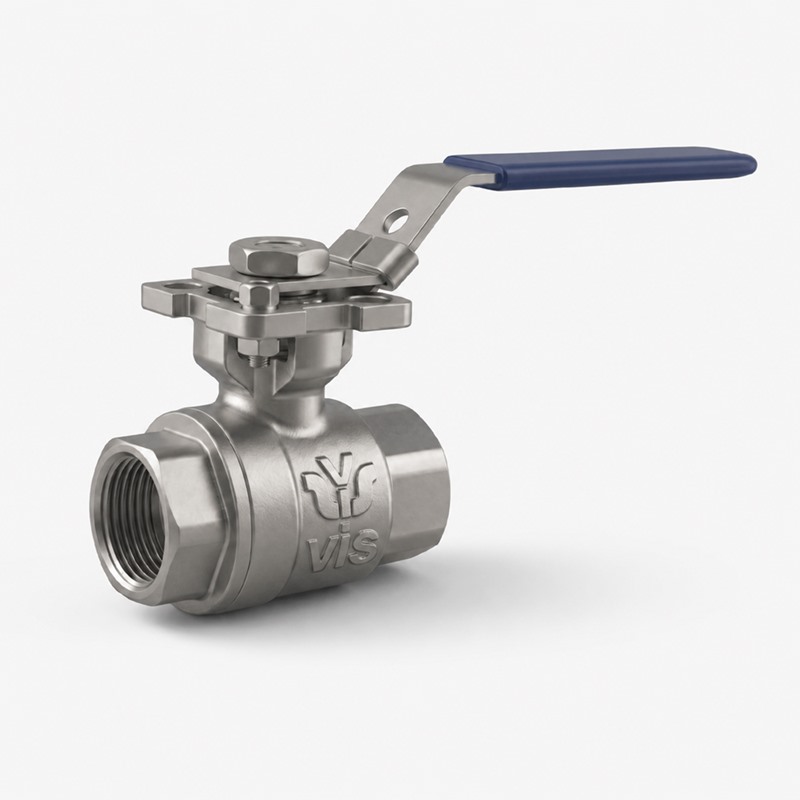

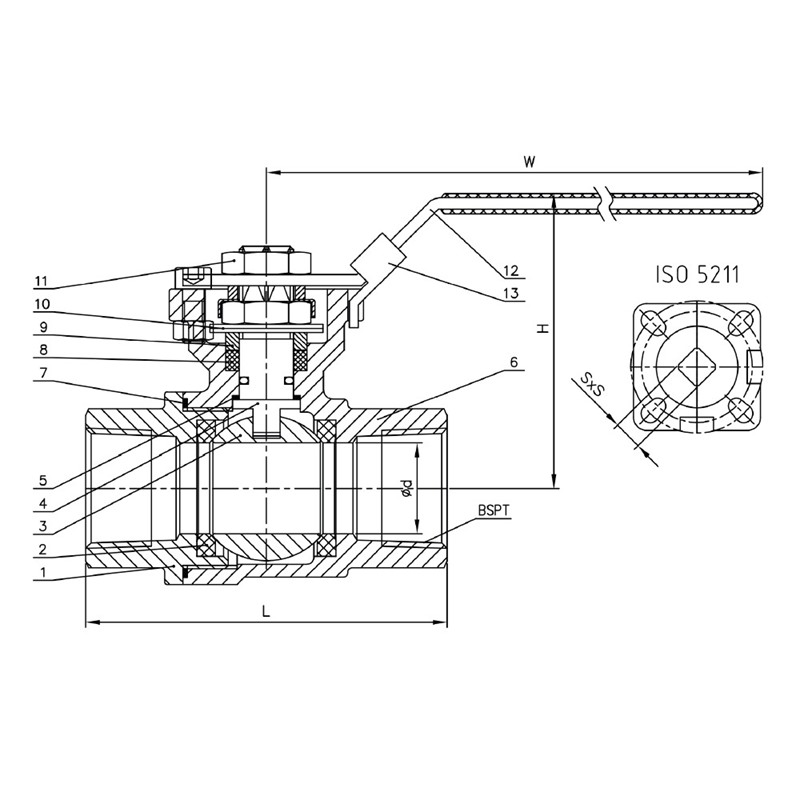

NO | PART NAME | MATERIAL |
|---|---|---|
1 | Gövde | WCB / CF8 / CF8M |
2 | Sit | PTFE |
3 | Küre | SS 304 / SS 316 |
4 | Mil | SS 304 / SS 316 |
5 | Küre Yatağı | PTFE |
6 | Kapak | WCB / CF8 / CF8M |
7 | Conta | PTFE |
8 | Salmastra | PTFE |
9 | Gland | SS201 / SS 304 |
10 | Pul | SS201 / SS 304 |
11 | Somun | SS201 / SS 304 |
12 | Kol | SS 201 + PVC |
DN | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
|---|---|---|---|---|---|---|---|---|---|---|---|
BSPT | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
d | 8 | 10 | 15 | 20 | 25 | 32 | 38 | 49 | 65 | 80 | 100 |
L | 61 | 61 | 61 | 71 | 81 | 97 | 105 | 120 | 145 | 168 | 204 |
H | 65 | 65 | 65 | 70 | 85 | 90 | 110 | 115 | 145 | 155 | 170 |
W | 125 | 125 | 125 | 125 | 155 | 155 | 185 | 185 | 260 | 260 | 300 |
ISO 5211 | F03/F04 | F03/F04 | F03/F04 | F03/F04 | F04/F05 | F04/F05 | F05/F07 | F05/F07 | F07/F10 | F07/F10 | F07/F10 |
SxS | 9 | 9 | 9 | 9 | 11 | 11 | 14 | 14 | 17 | 17 | 19 |
N.m | 3.5 | 3.5 | 3.5 | 6 | 6 | 7.5 | 18 | 28 | 32 | 38 | 80 |
Kg | 0.415 | 0.418 | 0.4585 | 0.586 | 0.96 | 1.34 | 1.7875 | 2.32 | 4.9575 | 6.94 | 10.9825 |
Pressure Rate | : | 63 Bar |
Size Range | : | DN8-DN100 |
Connection | : | BSP |
Application | : | Water, oil and gas |
