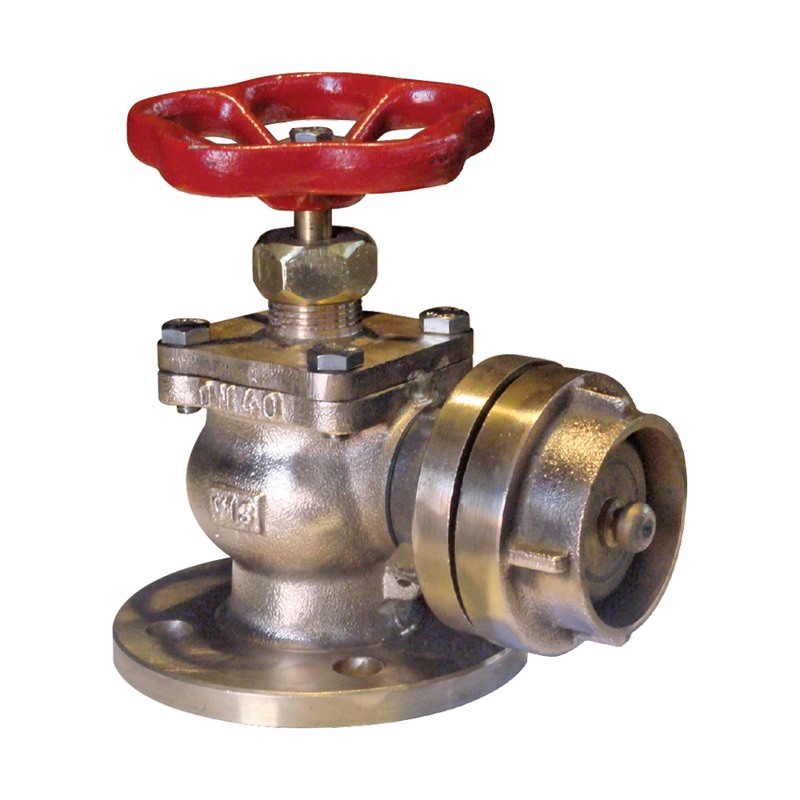

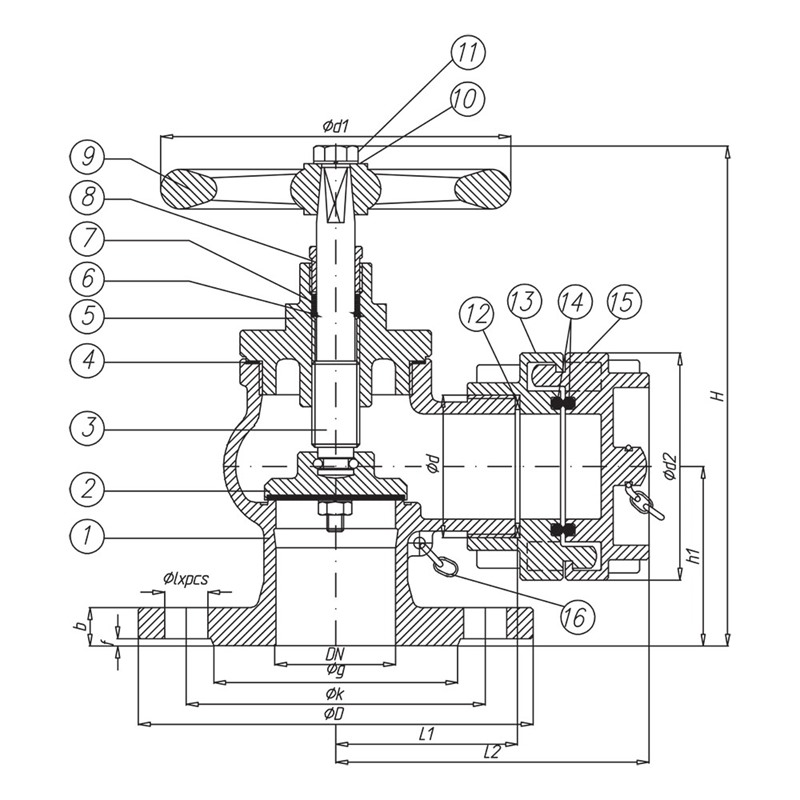

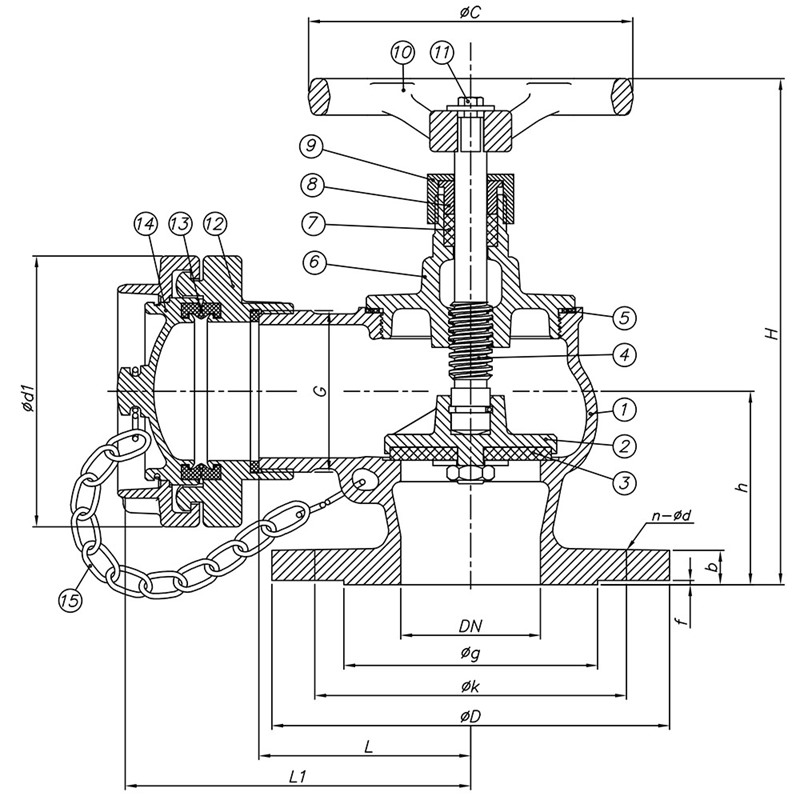

| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | G-CuSnSZnSPbS-C |
| 2 | Disc | G-CuSnSZnSPbS-C |
| 3 | Stem | CuZn39Pb3 |
| 4 | Gasket | Perbunan |
| 5 | Bonnet | G-CuSnSZnSPbS-C |
| 6 | Wasaher | CuZn39Pb3 |
| 7 | Packing | Graphite+ PTFE |
| 8 | Gland | CuZn39Pb3 |
| 9 | Handwheel | GG-2 5 |
| 10 | Washer | Steel 5 Zn |
| 11 | Bolt | Steel 5 Zn |
| 12 | Gasket | Perbunan |
| 13 | Fixed Coupling | CuZn39Pb3 |
| 14 | O-Ring | Perbunan |
| 15 | Blind Coupling | CuZn39Pb3 |
| 16 | Chain | Steel 5 Zn |
| PN 16 / DIN EN 1092 | Vana Dimensionsı | DIN 86211 | Weight | Stock Code | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Diameter | ØD | Øk | Øg | Øxad | f | Ød | Ød2 | hl | Ll | L2 | Ødl | H | kg | |
| DN 40 | 150 | 110 | 88 | Ø18x4 | 3 | R1 1/2" | 96 | 65 | 75 | 130 | 140 | 220 | 5,5 | |
| DN 50 | 165 | 125 | 102 | R2" | 96 | 75 | 75 | 130 | 230 | 7 | ||||
| DN 65 | 185 | 145 | 122 | R2 1/2" | 124 | 90 | 95 | 185 | 160 | 265 | 11 | |||
| Nominal Pressure | : | PN 10-16 |
| Size Range | : | DN40- DN50-DN65 |
| Dimensions | : | DIN 86211 |
| Flange Ends | : | DIN EN 1092 |
| Options Flange Options | : | British Coupling,Nor Coupling,Nakajima Coupling,Bronze Handwheels |
